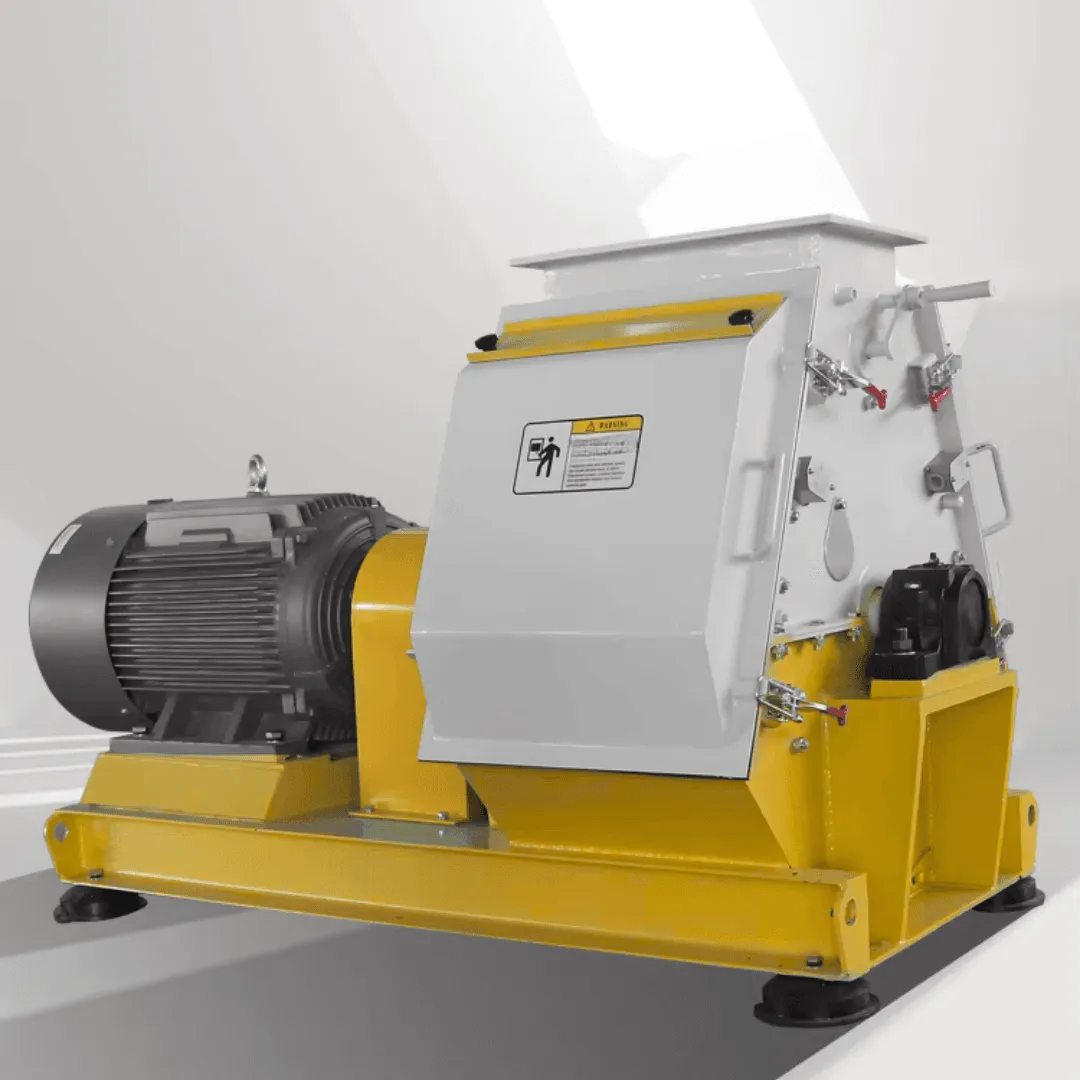

AFSB 185 — Hammer mill refiner 185 kW
Industrial refiner 185 kW, Ø1,200 mm chamber, 144 hammers, 3,900 kg/h. For high-volume recovery platforms and large industrial complexes.
Industrial
Free study and quote
Every machine is sized to your materials, volumes and site constraints. Reply within 24 to 48 business hours.
Key features
- Adjustable granulometry from 0.5 to 12 mm by screen change
- Tungsten carbide hammers for extended lifespan
- High-strength 65Mn steel screen
- High-speed rotor (2,980 rpm, 102 m/s) for optimal refining
- Robust design for intensive operation
- Compatible with cyclone, rotary valve and filter sleeves
Specs
Technical specifications
PropertyValue
Motor power185 kW
Throughput3 900 kg/h
Number of hammers144
Diamètre chambre de broyageØ 1 200 mm
Output granulometry0,5 – 12 mm (selon grille)
Vitesse rotor2 980 tr/min
Vitesse linéaire102 m/s
Matériau marteauxCarbure de tungstène
Matériau grilleAcier 65Mn
