BPXR30 — Pallet Shredder 30 kW
Pallet shredder 30 kW with interchangeable granulation screen. Self-feeding, processes pallets, crates and class B wood up to 2 tons/h.
Key features
- Production de plaquettes de bois calibrées selon grille de granulation
- Auto-alimenté sans poussoir, fonctionnement continu

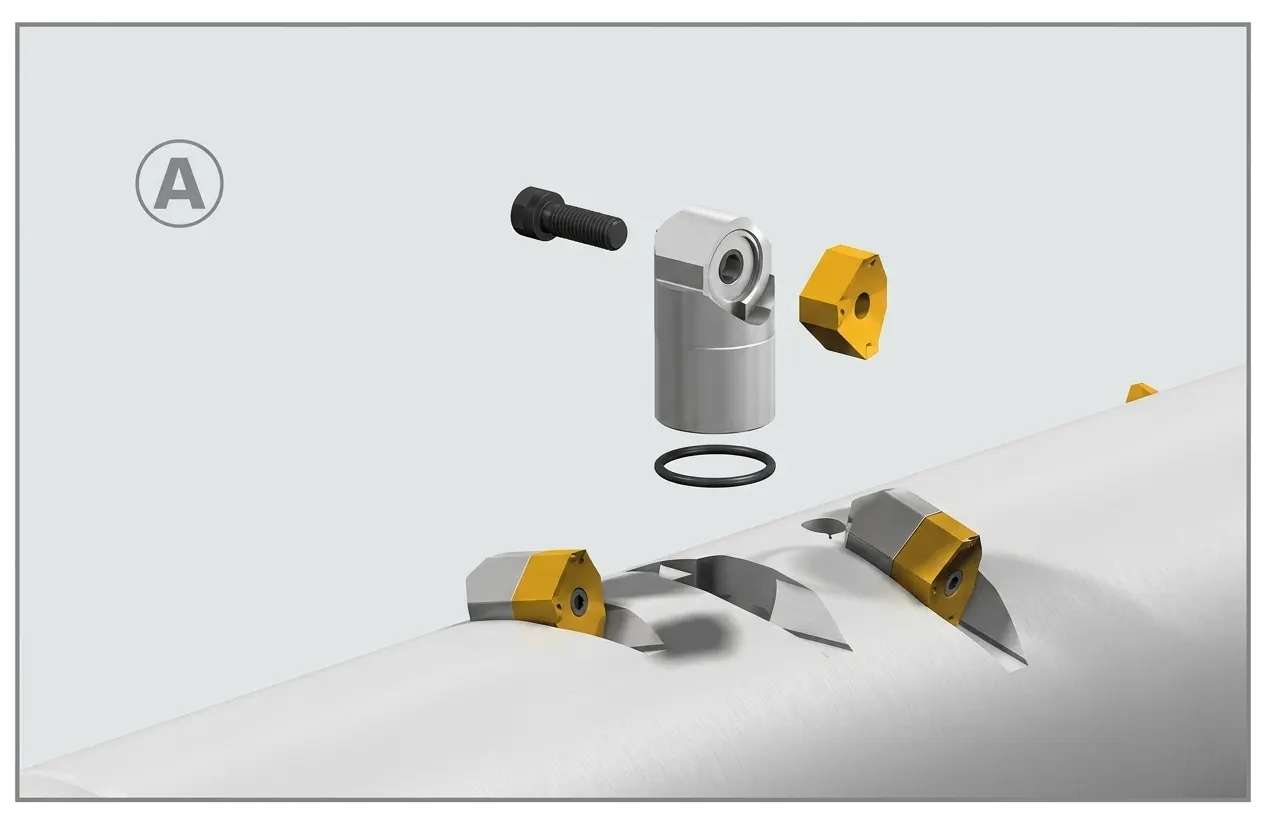

- Lames réversibles et indexables en 2 positions pour une durée de vie prolongée
- Accès rapide aux lames pour un entretien simplifié
- Séparation automatique des clous et agrafes par overband magnétique (option)
- Convoyeur de sortie disponible en option
Technical specifications
BPXR30 — Self-feeding pallet shredder 30 kW
The BPXR30 is a 30 kW single-shaft pallet shredder designed for wood recyclers, sorting platforms and sawmills looking to recover their pallets, crates and class B wood without investing in a full processing line. Its self-feeding system removes the need for a hydraulic pusher: pallets are naturally drawn into the rotor by the drum rotation.
A design built for daily maintenance

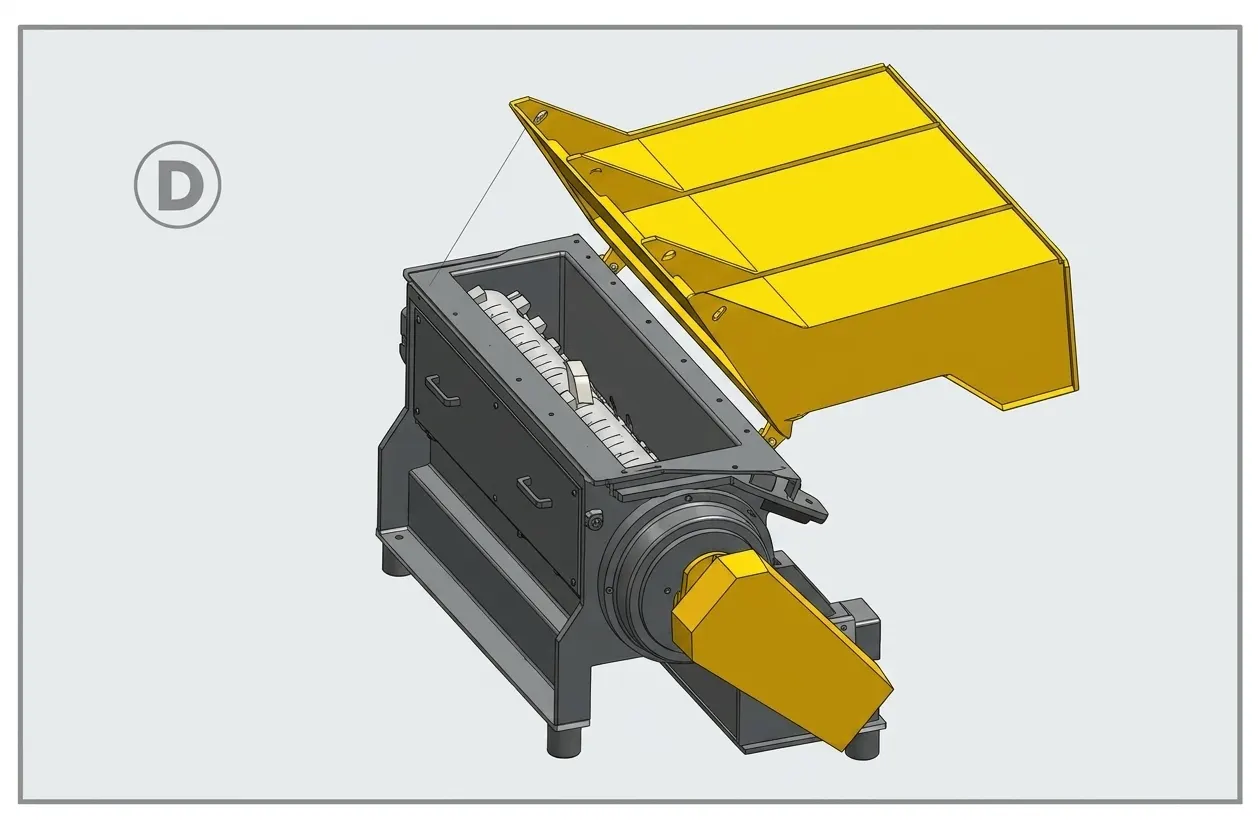

Access to the shredding chamber and cutting blades is provided by simply opening the hopper. This design drastically reduces intervention time for knife replacement or sizing screen changes. A single operator can carry out routine maintenance in less than 30 minutes.

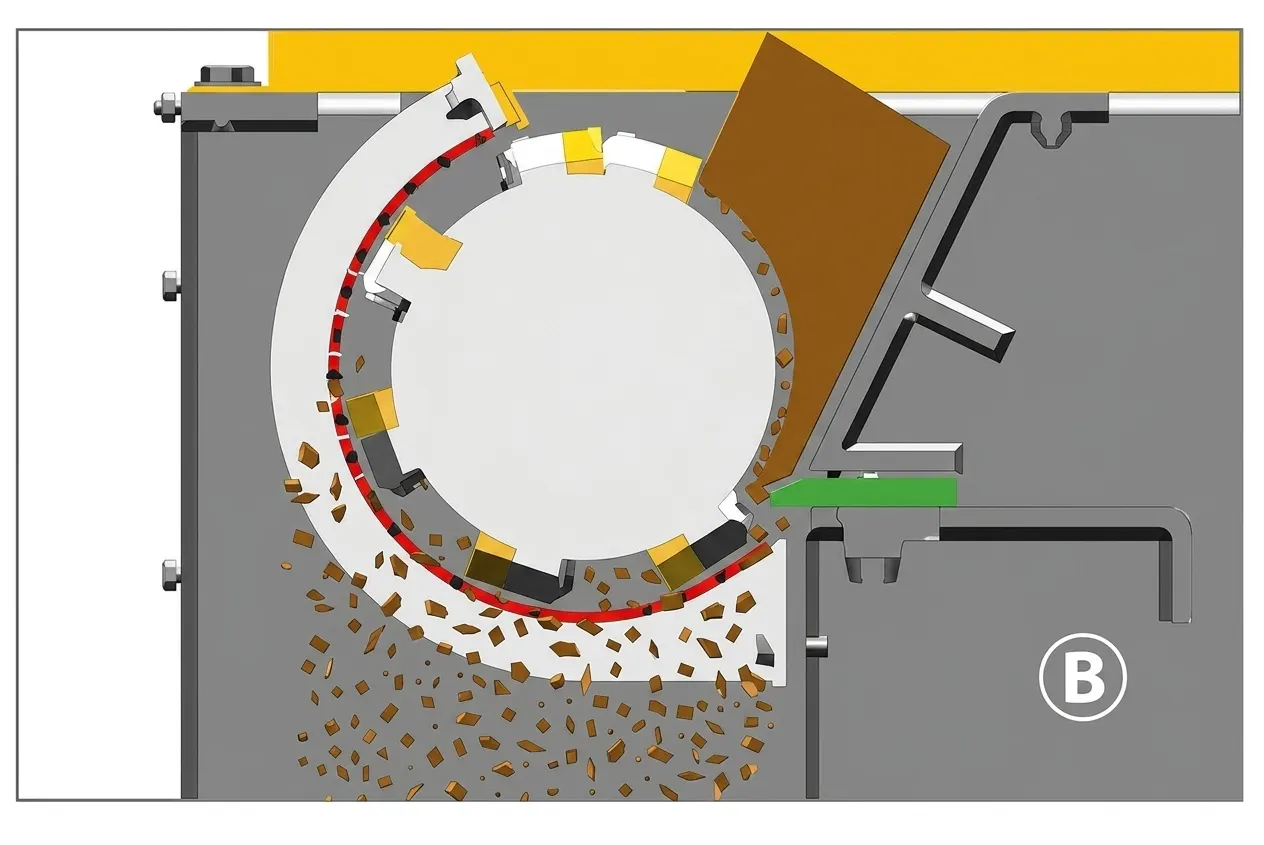

Controlled granulometry via interchangeable screen
The screen shredding system allows you to adjust the output granulometry to match your recovery needs:
- 30 mm screen: biomass boiler feed
- 50 mm screen: composting and mulching
- 80 mm screen: pre-shredding before refining
Key specifications
- Motor power: 30 kW
- Average throughput: 1.5 to 2 tons/h depending on pallet type
- Self-feeding, no hydraulic pusher required
- Interchangeable sizing screen
- Simplified maintenance through hopper opening
- Compatible with treated wood, crates and class B wood
Typical applications

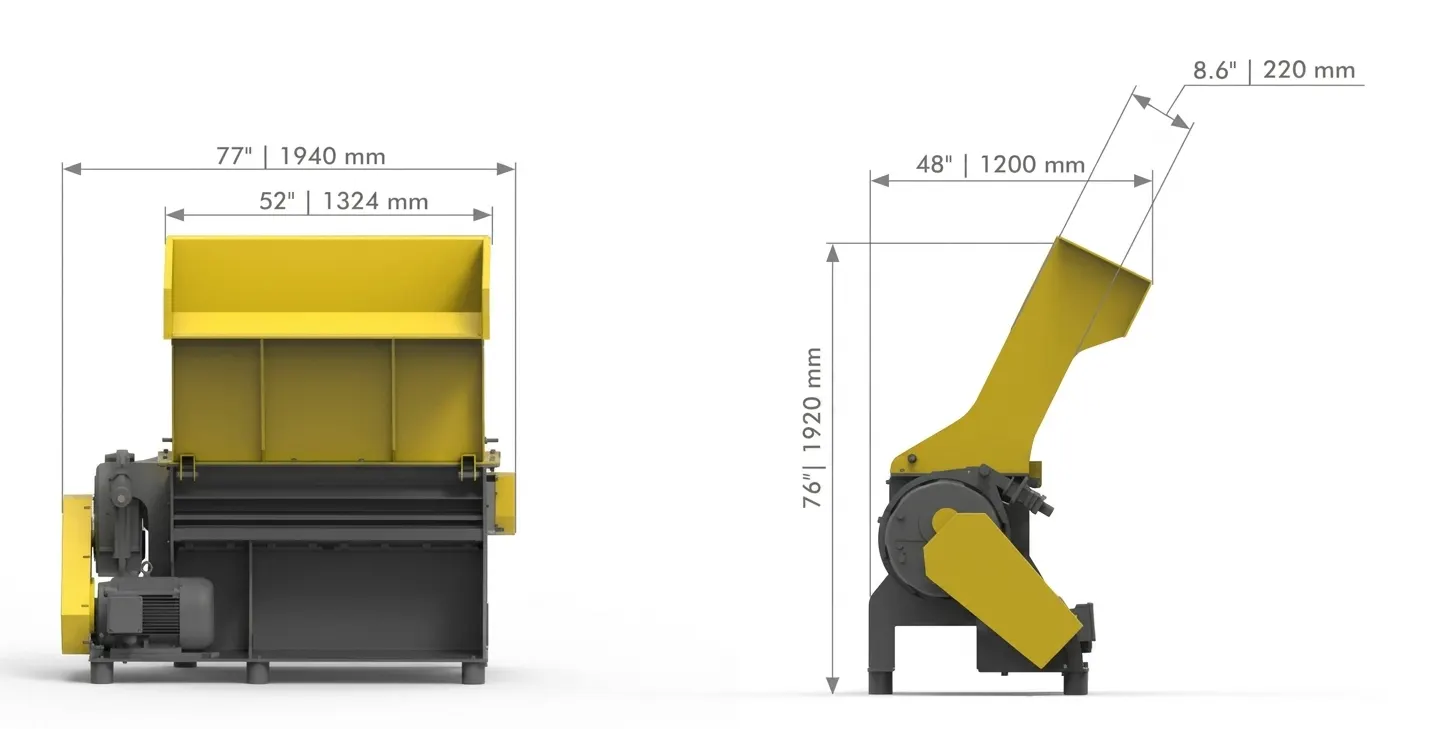

The BPXR30 fits in recycling centres, sorting platforms, sawmills looking to recover offcuts, and farming operations producing their own mulch from recovered wood. Its compact footprint (see dimensional drawing above) allows easy integration into existing facilities.
